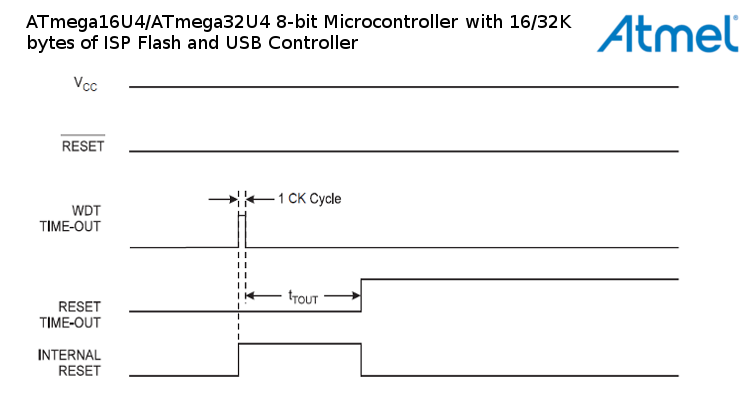

ATmega16U4/ATmega32U4 8-bit Microcontroller with 16/32K bytes of ISP Flash
The AVR core combines a rich instruction set with 32 general purpose working registers. All the 32 registers are directly connected to the Arithmetic Logic Unit (ALU), allowing two independent registers to be accessed in one single instruction executed in one clock cycle. The resulting architecture is more code efficient while achieving throughputs up to ten times faster than conventional CISC microcontrollers. The device provides the following features: 16/32K bytes of In-System Programmable Flash with Read-While- Write capabilities, 512Bytes/1K bytes EEPROM, 1.25/2.5K bytes SRAM, 26 general purpose I/O lines (CMOS outputs and LVTTL inputs), 32 general purpose working registers
PDF manual properties
- Brand: Atmel Corporation
- Category: Electronics
- Number Of Pages: 438
- Filesize: 5.35 MB
- Language: English
- File date: 2016-03-31
